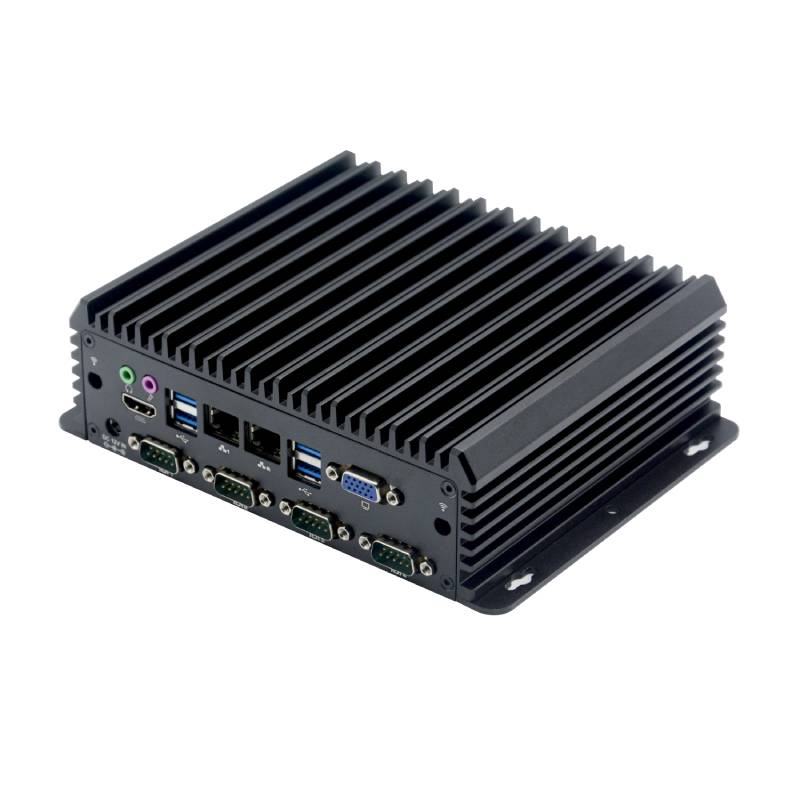

【Model】BVS-GE0Z-3F
【Item】Supplier Price Dual Display Industrial Mini PC With VGA Port
【Notice】
- Please contact us if you need other specifications.
- Payment terms: Samples 100% payment in advance, bulk order 30% deposit, 70% payment before shipment. Sample order accepted.
- Sample delivery time is 7 working days after payment is received for bulk orders, and shipping time is negotiated.
- The shipping fees should be covered by buyers, please contact us for details.
- Warranty: One year.
【Paramater List】
|
Model |
BVS-GE0Z-3F(6360U) |
|
|
Case
|
Material/Structure |
All aluminum alloy without fan |
|
color |
Bright black |
|
|
Dimensions (length, width, height) |
174mm*148mm*57mm |
|
|
Weight (bare metal net weight) |
1.35KG |
|
|
installation |
Desktop/Embedded |
|
|

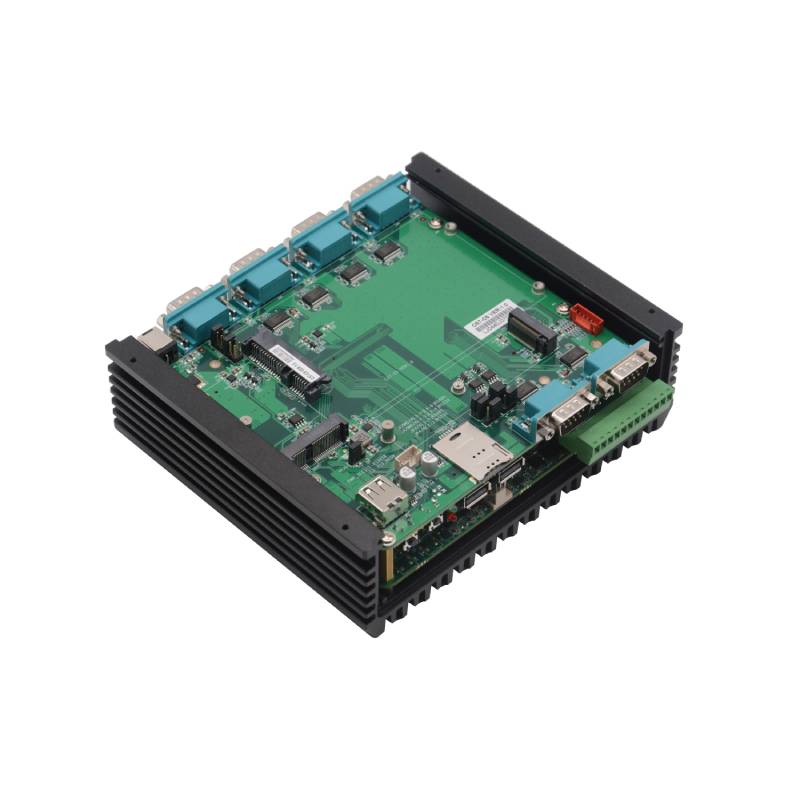

Motherboard
|
CPU |
Integrated Intel®Skylake-U I5 6360U/2.0GHz dual-core four-thread processor TDP 15W |
|
System chip |
Based on the Intel®Skylake-U SOC platform |
|
|
display |
Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4 |
|
|
RAM |
2*DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum support 32GB |
|
|

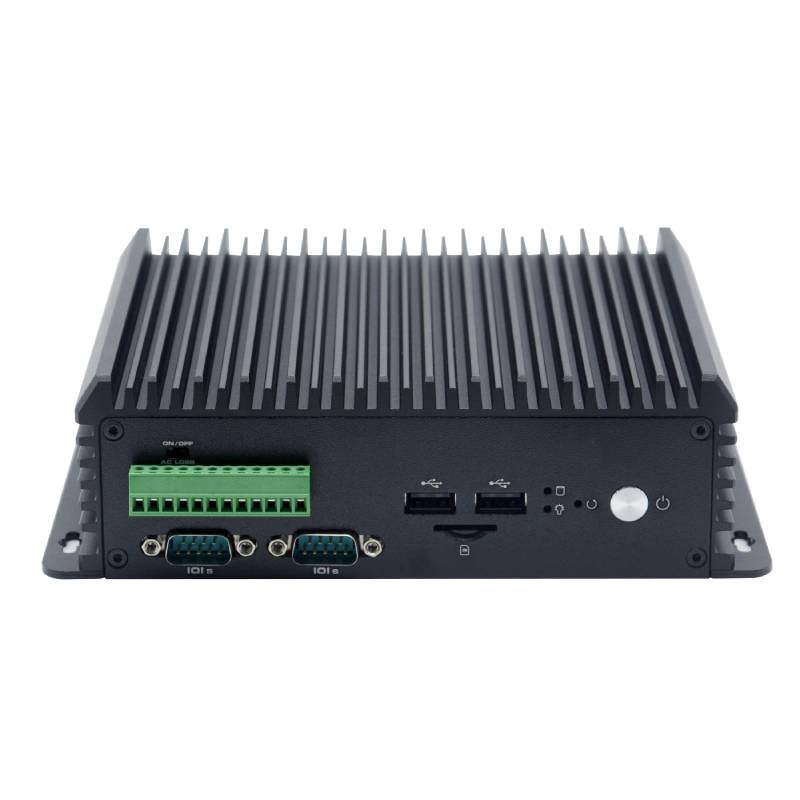

Front panel interface
|
POWER |
1*Power switch, 1*Reset switch |
|
AC LOSS |
1*AC LOSS (Toggle switch when power on) |
|
|
USB |
2* USB2.0 interface, 1* built-in USB dongle |
|
|
Phoenix Terminal |
1*12pin, support four in and four out GPIO, switch, 5V |
|
|
COM |
2* DB9 serial interface, COM5, COM6 support RS232/RS485 switch |
|
|
SIM |
1* SIM card slot, 3G/4G module application |
|
|

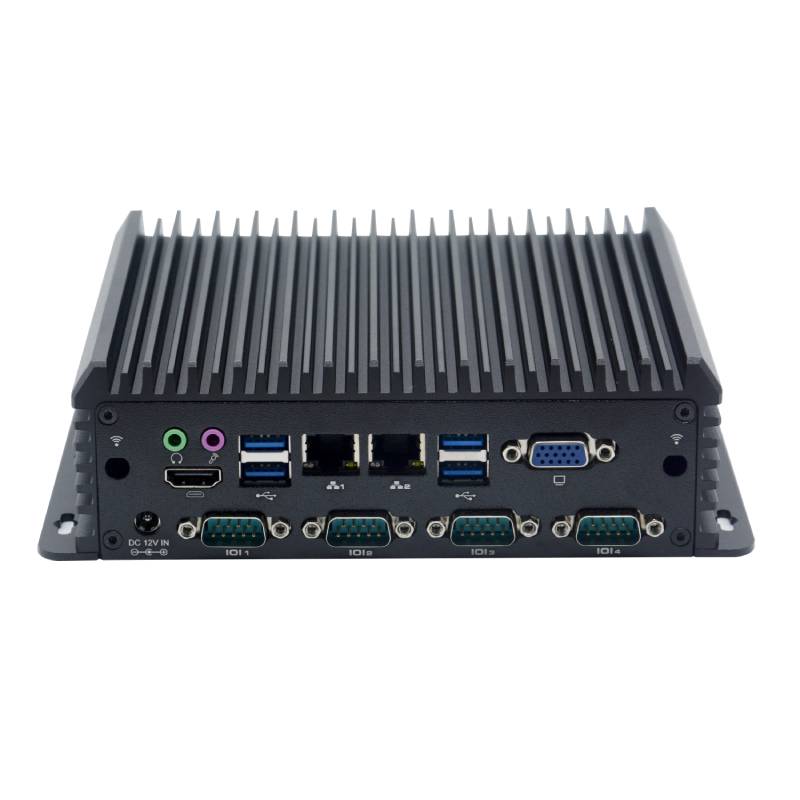

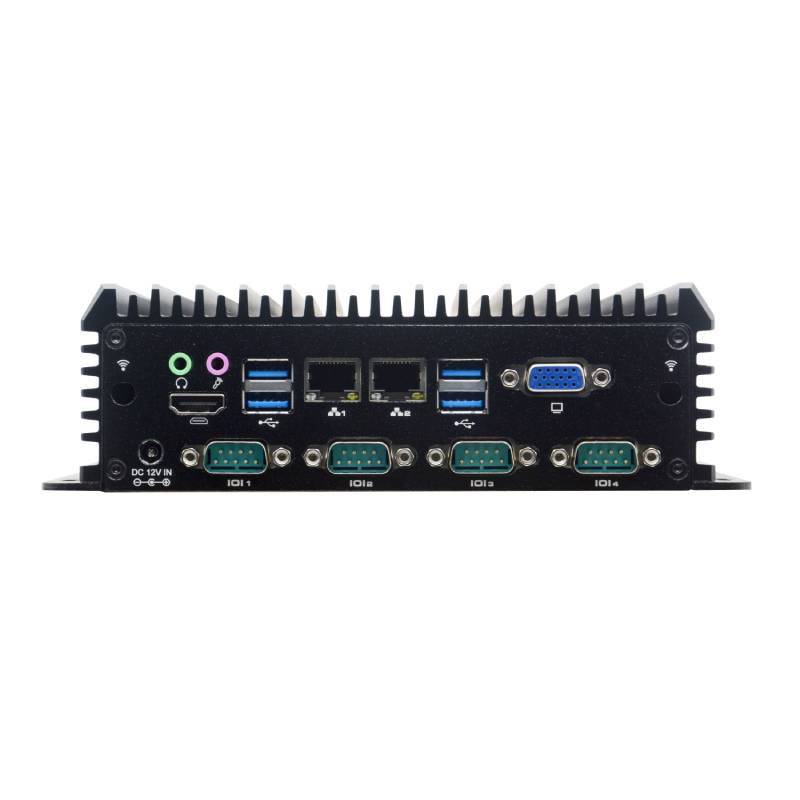

Rear panel interface
|
Display interface |
1*VGA interface, 1*HD/M1.4 interface |
|
LAN |
2*Intel® WGI211AT Gigabit network card, support Wake on LAN, PXE function |
|
|
USB |
4* USB3.0 interface |
|
|
COM |
4* DB9 RS232 serial interface, COM1/2 supports the 9th pin 5V/12V charged |
|
|
Audio |
1* Line out interface, 1* MIC interface |
|
|
power supply |
1* DC power adapter interface, supports DC12V power input |
|
|
storage
|
SANTA |
1*2.5 inch hard drive expansion |
|
Solid state drive |
1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps |
|
|
Expand
|
Mini PCIE |
1* Mini PCIe slot, support WIFI/4G module |
|
M.2 |
1*M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD |
|
|
software support
|
Microsoft Windows |
Windows 10, 64bit (without key) |
|
Linux |
Ubuntu |
|
|
Watch Dog |
Support hardware reset function (256 levels, 0~255 seconds) |
|
|
Power requirement
|
Power type |
External power adapter |
|
Voltage input |
DC 12V |
|
|
Power output |
AC TO DC, 36W / 60W (optional) |
|
|
surroundings |
Operating temperature |
-10℃～60℃ |
|
storage temperature |
-20℃～70℃ |
|
|
Relative humidity |
5%-95% relative humidity, non-condensing |
|
|
Job vibration |
0.5g rms/5-500HZ/random/operating |
|
【Features】
a) Intel 8th generation Gemini lake series CPU
b) 2 * HD/M1, supporting 4K display
c) 1 * Type C(full function)(date/charge/audio)
d) 1 * USB 3.0, supports quick charge
e) Rich interface, full functions
f) Smart meeting + Office business
【About Package】
One piece per box.
【Application】
Digital signage, smart home, smart conference, educational use or home theater, etc.
